Airless Spray Painting Equipment Expertise

1. Professional Snapshot

As a BGAS-CSWIP certified Painting Inspector, I have direct experience in inspection, supervision and troubleshooting of airless spray systems used for structural steel, piping, storage tanks and industrial facilities.

Experience with single-component and multi-component (2K) coatings.
Systems operated up to 70:1 ratio and 500+ bar working pressure.
Daily verification of pump pressure, spray pattern, tip size and filtration.
Coordination with coating manufacturer TDS / project specification.

Key Responsibilities

Pre-use inspection & functionality checks for pumps, guns and hoses.
Witnessing & recording pressure tests / leak tests on high-pressure lines.
Monitoring mixing, thinning and induction time as per datasheet.
Recording equipment parameters in daily inspection reports.
Raising NCR/observation for unsafe set-ups or non-compliant practices.

2. Airless Spray Pumps & Machines

Hydraulic, pneumatic and petrol-driven pumps used for heavy-duty industrial spray work.

Graco King & GH Series

King 70:1 / 60:1 / 45:1 · GH 833 · GH 733 Big Rig · GMax 7900 & 5900

Hydraulic and air-operated pumps for high-build epoxy, polyurethane and high-solids coatings.
Witnessed setting of fluid pressure versus atomisation quality for different DFT requirements.
Daily checks on air motor lubrication, ice-free operation and relief valve condition.
Verification of correct fluid intake, suction strainers and return line arrangements.

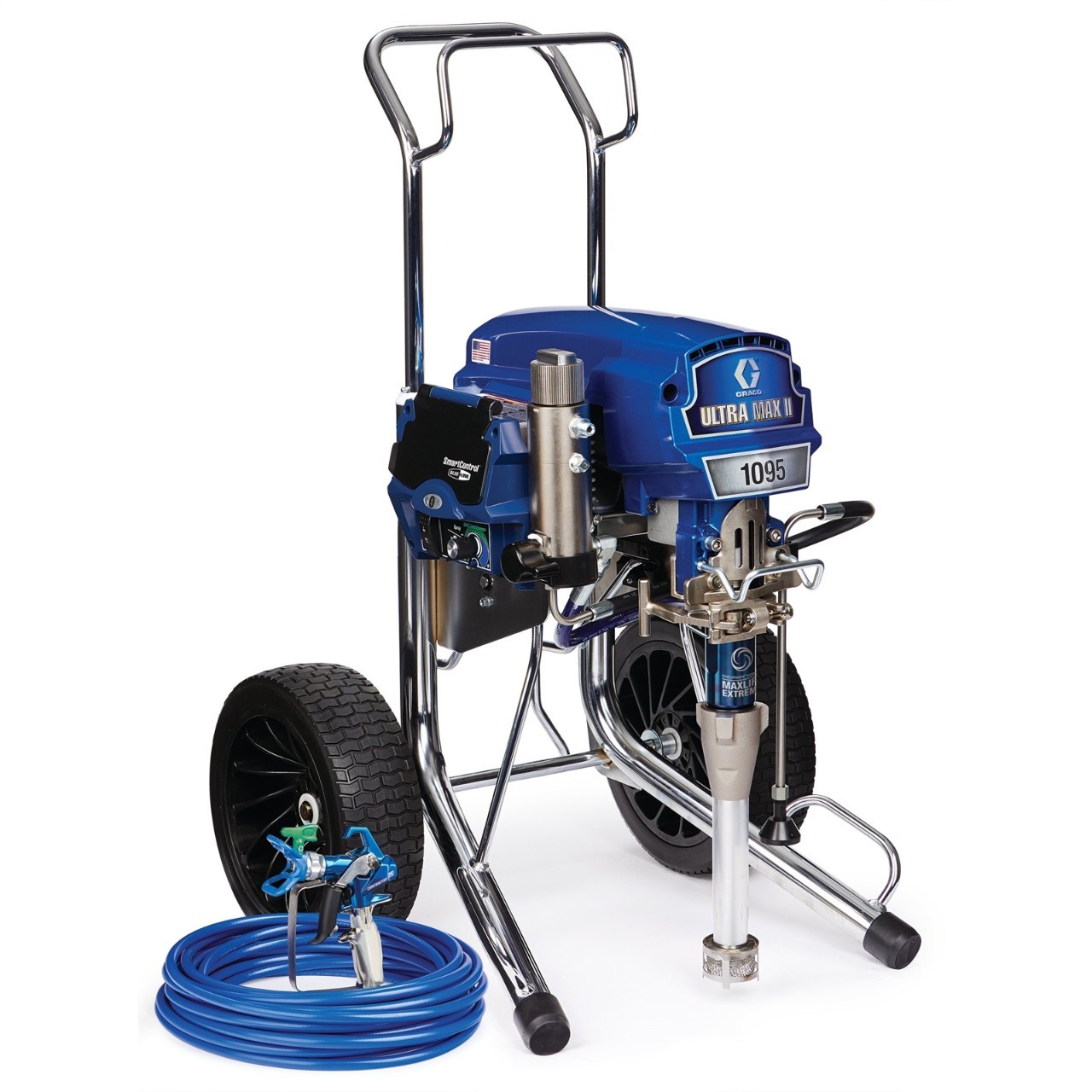

Graco Electric Airless Spray Machines

Ultra Max II · Ultra 495 PC Pro · 595 PC Pro · 695 / 795 / 1095 Hi-Boy

Ideal for medium to high production coating jobs using epoxy, PU and acrylic systems.
Inspection of motor load, pressure control accuracy and smooth pump stroke.
Verification of SmartControl system for stable spray pattern without pulsation.
Checking pump packings, rods, displacement pump lubrication and filter mesh alignment.
Ensuring correct hose length-to-pressure ratio for long-range applications.

Inspector’s focus: verifying that the selected pump capacity, pressure ratio and hose length are suitable for the coating viscosity, ambient conditions and required production rate, while staying within manufacturer limits.

3. Airless Spray Guns & Triggers

High-pressure guns used for fine atomisation, pattern control and safe operations.

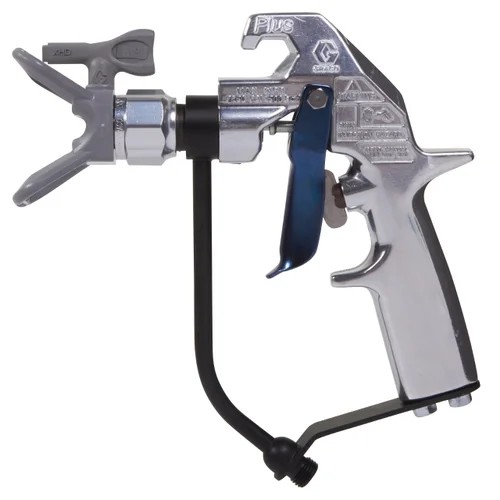

High-Pressure Guns (Up to 500+ bar)

Graco XTR, Silver Plus, XHF · Wagner Vector Grip/Pro · Titan RX-Pro · Wiwa 500 / 700

Inspection of trigger lock functionality before each shift.
Verification of correct gun filter mesh size based on tip size and coating type.
Monitoring for needle tip wear, internal leakage and packing gland leakage.
Ensuring gun handle grounding for static dissipation in flammable environments.

Common issues observed: blocked filters causing pulsation, damaged tip seals leading to tails, and missing trigger locks creating serious safety hazards. These are highlighted during site toolbox talks.

4. Spray Tips & Nozzles

Critical components controlling fan width, output and film build on each pass.

Airless Tips – Regular & Fine Finish

Graco RAC X (FFLP, LP, PAA) · Wagner TradeTip 3 · Titan TR1 / TR2

Routine inspection of tip engraving (e.g. 417, 521, 643) to match design WFT & coverage.
Use of tip wear gauge to identify oversized or eroded tips causing over-consumption.
Checking tip guards, seals and correct orientation of the tip for spray / clean positions.
Verification that tip selection aligns with TDS recommended WFT / DFT.

5. High-Pressure Hoses & Fittings

Safe transfer of high-pressure paint from pump to gun with minimum pressure loss.

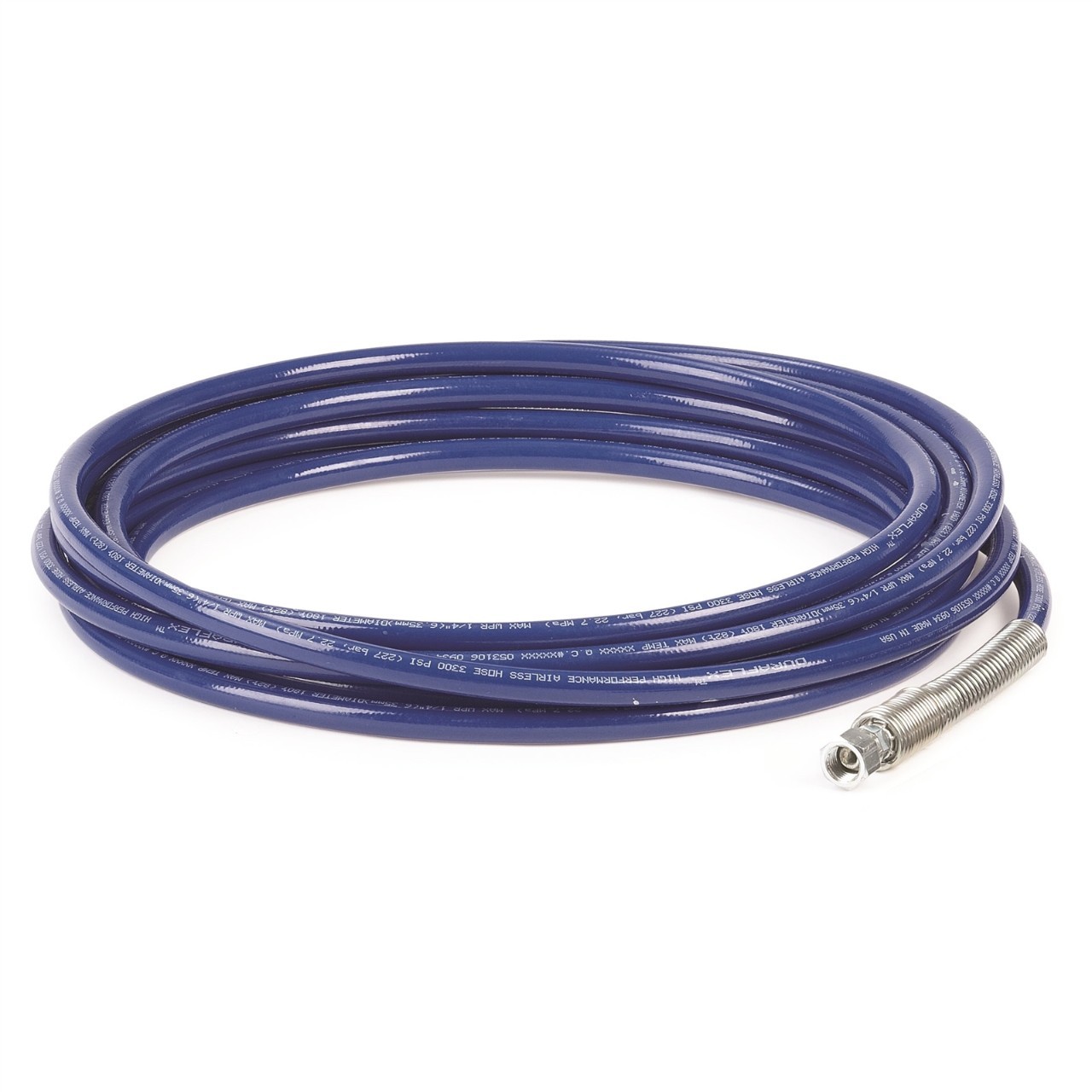

High pressure airless hoses and fittings

Hoses, Whips & Connections

1/4", 3/8", 1/2" main hose · 3/16" whip hose · rated 225–350 bar

Visual inspection for cuts, kinks, blistering and damaged outer jackets before pressurising.
Checking correct pressure rating & manufacturing date printed on hose.
Verification of whip checks, safety clips and secure couplings at all critical joints.
Periodic witnessing of pressure tests following company procedures.

Item	Inspector Focus	Risk if Not Controlled
Main high-pressure hose	Rating, condition, routing & protection from sharp edges	Hose burst, injection injury, sudden atomisation loss
Whip hose	Flexibility, no twisting, correct length near gun	Poor gun control, operator fatigue, pattern defects
Couplings & fittings	Tightness, safety clips & seals	Leakage, paint spray-outs, environmental contamination

6. Filtration & Manifolds

Clean paint flow to prevent tip blockages, surface defects and downtime.

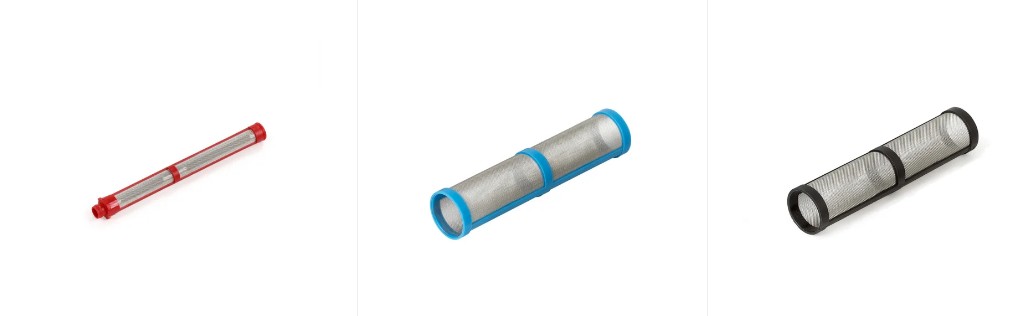

Pump inlet and gun filters for airless systems

Multi-Stage Filtration System

Pump inlet strainer · Manifold filter · Gun filter

Pump inlet strainers 30–100 mesh used to stop large contaminants and skinning.
Manifold filters and gun filters 60–200 mesh selected based on coating and tip size.
Inspector verifies daily cleaning & re-assembly recorded in crew checklist.
Special attention given to zinc-rich primers & high-solids epoxies prone to settling.

7. Accessories & Supporting Equipment

Tools that improve access, safety and application consistency.

Essential Airless Accessories

Tip guards, extension poles (up to 6 ft) for overhead and hard-to-reach areas.
Fluid & air pressure gauges (0–600 bar) for verifying operating range.
Throat Seal Liquid (TSL) levels monitored to protect pump packings.
Pneumatic agitators, drum strainers and mixing paddles for uniform coating consistency.

Value to the project: correct configuration of accessories allows safe access to complex structures, reduces overspray, improves productivity and keeps the finished coating within specified DFT.

8. Safety, QA/QC & Daily Inspection Checklist

Every shift begins with a pre-start safety & equipment inspection witnessed or carried out by the inspector. This ensures that the airless system is safe, compliant and ready for high-pressure operation.

Confirmation that all personnel wear appropriate PPE (gloves, goggles, coveralls, safety shoes).
Verification of respiratory protection when using solvent-based or isocyanate coatings.
Ensuring spray area has adequate ventilation and exclusion zones.
Checking that earthing / bonding is in place for equipment and drums.

Daily Checklist (Sample)

Item	Status
Pump, hoses & gun visual inspection	✔ Checked / defects recorded
Pressure test / leak check	✔ Satisfactory / NCR raised if not
Filters cleaned & reinstalled	✔ Logged in daily report
Tip size & WFT measurement vs TDS	✔ Verified on first panel / test area
Housekeeping & safe hose routing	✔ Area accepted for spraying

Standards & Reference: Work activities are aligned with project specifications, BGAS-CSWIP painting inspection practices, ISO/SSPC standards for surface preparation & coating application, and the equipment manufacturers’ instructions (Graco, Wiwa, Wagner, Titan, etc.).
